MESH-Smart Graffiti Floodlight--ML301X-50W


Model:  ML301X-50W--WIFI/BLUETOOTH/ZIGBEE

Color:  Black

Material:  Die-cast aluminum + tempered glass


Product Features

●MESH wireless transmission technology, with stable signal and strong penetration.

● Supports 16 million color adjustment, allowing seamless switching between cool and warm white light and colored light through the control of light color, brightness, and color temperature via APP, MESH remote control, or voice assistants (such as Xiao Ai). This meets diverse needs such as atmosphere creation and scene linkage.

●With IP66 waterproof and dustproof capabilities, it is suitable for outdoor courtyards, building facades, poolsides, and other humid environments. Made of die-cast aluminum and tempered glass, it boasts excellent heat dissipation performance, ensuring long-term stable operation.

● Supports the pairing of multiple devices, allowing simultaneous control over them. One remote control can manage and synchronize up to 500 controllers. Each controller can be supported by 10 remote controls. (Control distance of 30 meters)

●The brightness of the remote control can be adjusted according to personal preference, and the brightness and speed of the dynamic mode can be edited.

●This controller can adjust brightness, color, voice control, select various dynamic or custom scene modes, timing, countdown, and other functions through the Doodle/Smart Life APP.

● Utilizing PWM (Pulse Width Modulation) technology ensures a smooth transition of lighting, preventing eye fatigue

ML301X MESH-Smart-Graffiti-Floodlight



Input voltage

DC24V/AC110-230V















Product Power

50W



Control Distance

30M



PARAMETERS

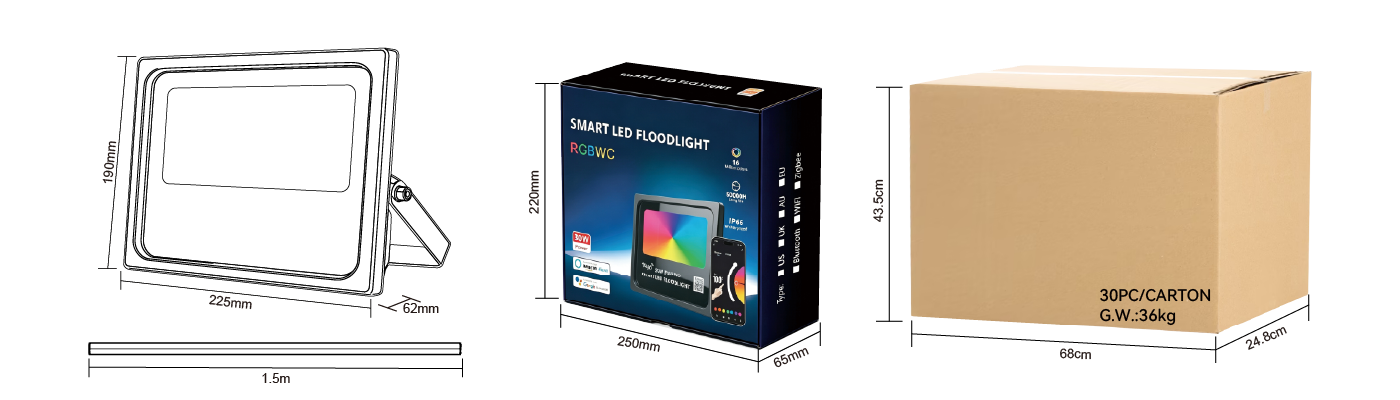

SIZE/CM

G.W./KG

Signal Protocol

MESH+WIFI/Bluetooth/Zigbee



water proof rating

IP66



1PCS

24.5*22*6.5

1.181

Iuminescent color

RGB+DW+CW



Operating temperature

Ta:-20-+60°C



30PCS

68*24.8*43.5

36
